升压式转换器
JW5513
The JW5513 is a synchronous high-efficiency, step-up boost converter. The device adopts constant-off-time (COT) control topology. The integrated low RDS(ON) switches minimize the conduction loss.
The JW5513 supports the selection of pulse-skip mode (PFM), forced continuous conduction mode (PWM), and ultrasonic mode(USM) in light-load condition. The device features cycle by cycle peak current limit up to 15A. The low output voltage ripple, the small external inductor and the capacitor size are achieved at programmable pseudo-constant frequency.
JW5513 guarantees robustness with over voltage protection and over temperature protection
FEATURES
Input Voltage Range: 2.6V to 20V
Output Voltage Range: up to 20V
Programmable Switch Peak Current: up to 15A
Low RDS(ON) for FETs Integrated: Low-Side FET: 7.5mΩ, High-Side FET: 16mΩ
Adjustable Switching Frequency: 300kHz to 2MHz
PFM/USM/PWM Selectable Light Load Operation Mode
Internal Loop Compensation
Internal Soft-start Limit the Inrush Current
Over Temperature Protection
Over Voltage Protection
RoHS Compliant and Halogen Free
Compact Package: QFN3x3-20

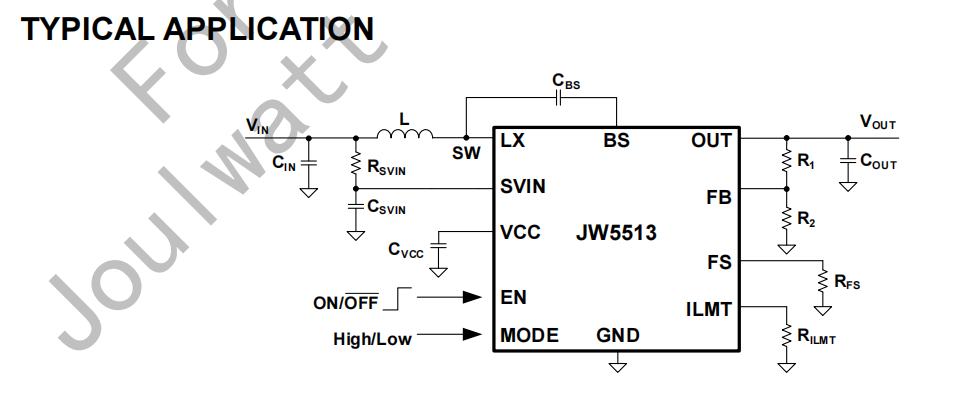

APPLICATIONS
High Power AP
Bluetooth Speaker
Power Banks
E-cigarette
