ESMT(晶豪科技)
带EQ数字输入 D类
AD85050-LG48NRR

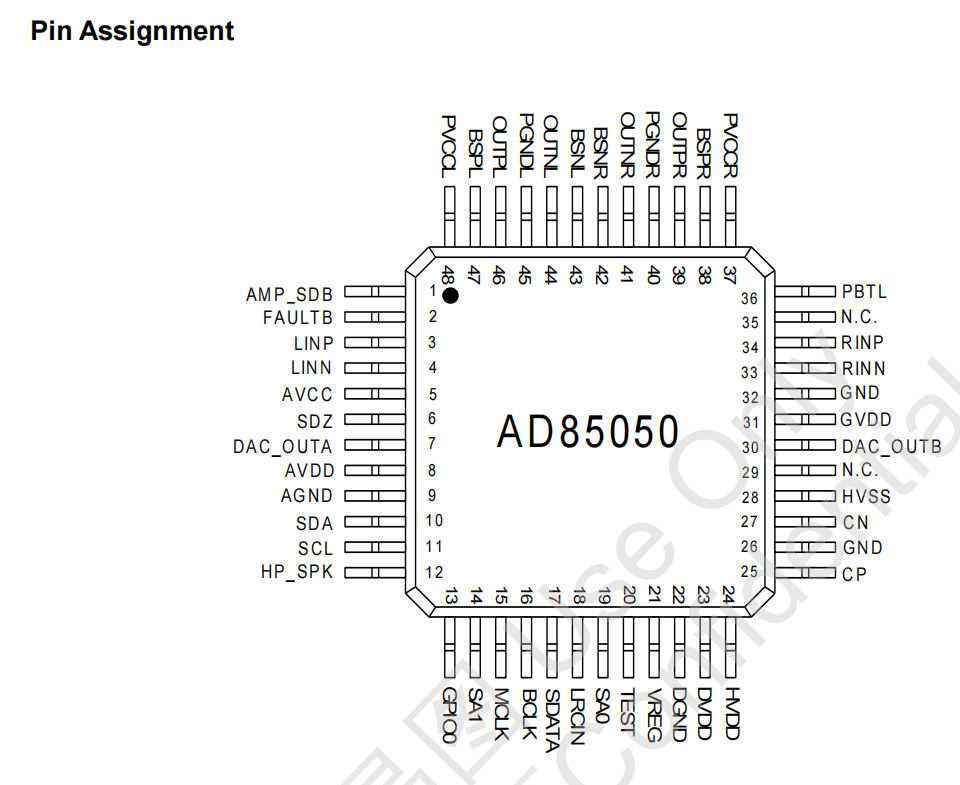

AD85050 is a digital audio amplifier capable of driving. a pair of 8Ω,30W or a single 4Ω,60W speaker output. In headphone output mode, it can delivered 25mW into 32Ω load for head phone output.
AD85050 provides advanced audio processing functions, such as volume control, 36 EQ bands, audio mixing, 3D surround sound and Dynamic Range Control (DRC). These are fully programmable via a simple I²C control interface. Robust protection circuits are provided to protect AD85050 from damage due to accidental erroneous operating condition. The full digital circuit design of AD85050 is tolerant of noise and PVT (Process, Voltage, and Temperature) variation. AD85050 is pop free during instantaneous power on/off or mute/shut down switching because of its robust built-in anti-pop circuit.
Features
16/18/20/24-bits input with I²S, Left-alignment and Right-alignment data format
Multiple sampling frequencies (Fs) 8kHz and 32kHz / 44.1kHz / 48kHz and 64kHz / 88.2kHz / 96kHz and 128kHz / 176.4kHz / 192kHz
System clock = 64x, 128x, 192x, 256x, 384x, 512x, 576x, 768x, 1024x Fs
MCLK system:
256x~4096x Fs for 8kHz
64x~1024x Fs for 32kHz / 44.1kHz / 48kHz
64x~512x Fs for 64kHz / 88.2kHz / 96kHz
64x~256x Fs for 128kHz / 176.4kHz / 192kHz
BCLK system:
64xFs for 32kHz / 44.1kHz / 48kHz
64xFs for 64kHz / 88.2kHz / 96kHz
64xFs for 128kHz / 176.4kHz / 192kHz
Supply voltage
1.8V or 3.3V for digital I/O
3.3V for analog circuit and headphone driver
4.5V~26V for loudspeaker driver
Speaker or headphone out selection
Line-driver maximum output swing into 10kΩ - 2Vrms at 3.3V supply voltage
Headphone output power
25mW x 2ch into 32Ω @ 0.1% THD+N
Speaker output power
30W x 2ch into 8Ω @ <1% THD+N@24V
Sound processing including：
36 bands parametric speaker EQ
Volume control (+24dB~-103dB, 0.125dB/step)
Dynamic range control
Three Band plus post Dynamic range control
Power Clipping
Programmed 3D surround sound
Channel mixing
Noise gate with hysteresis window
Bass/Treble tone control
DC-blocking high-pass filter
Pre-scale/post-scale
Virtual Bass/exciter
Dynamic bass
Anti-pop design
Level meter and power meter
I²S output with selectable audio DSP point
Supports I²C control without clock
I²C control interface with selectable device
address
Internal PLL
Support initial EEPROM setting
Protection
OCP
OVP
UVP
OTP
DCP
Closed-loop structure with good PSRR
Applications
Boom-box, CD and DVD receiver, docking system
Powered speaker
Wireless audio
AI speaker
