数字输入 D类+线路驱动器

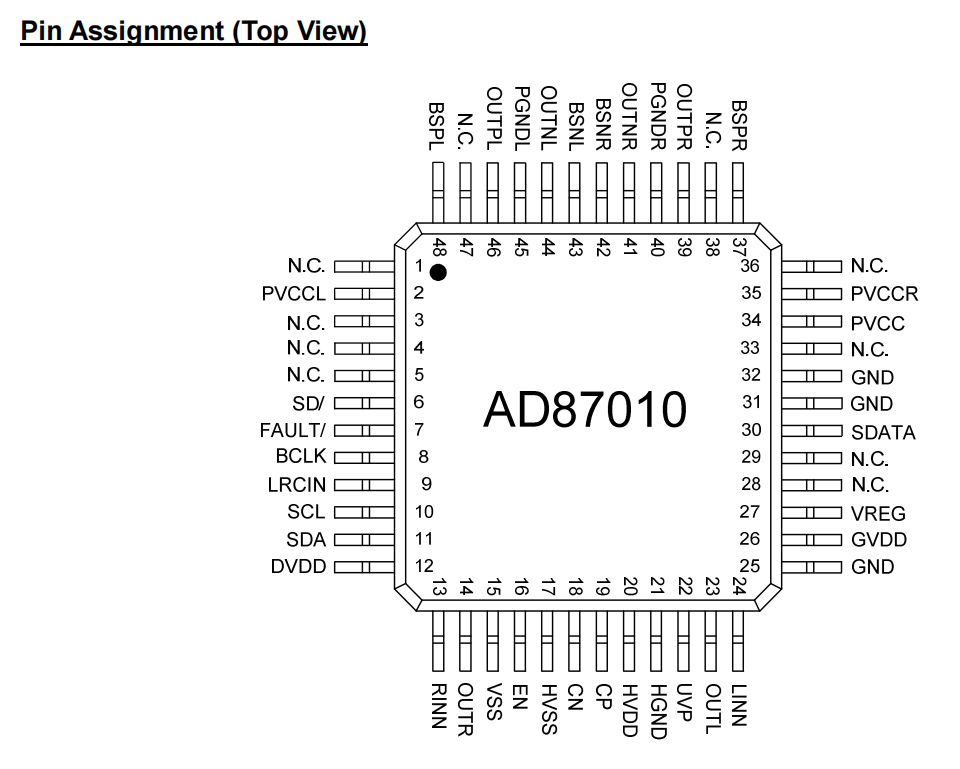

AD87010-LG48NRY
AD87010 is an integrated audio system solution, embedding digital audio processing, power stage amplifier, and a stereo 2Vrms line driver.
AD87010 is a digital audio amplifier capable of driving a pair of 8Ω,20W or a single 4Ω,40W speaker, both which operate with play music at a 24V supply.
Using I²C digital control interface, the user can control AD87010’s input format selection, mute and volume control functions. AD87010 has many built-in protection circuits to safeguard AD87010 from connection errors.
Features
16/18/20/24-bit input with I2 S, Left-alignment and Right-alignment data format
PSNR & DR(A-weighting)
Loudspeaker: 102dB (DR) @ 24V
Multiple sampling frequencies (Fs)
32kHz / 44.1kHz / 48kHz and
64kHz / 88.2kHz / 96kHz and
128kHz/176.4kHz/192kHz
System clock = 64x, 128x, 256x, 384x, 512x, 768x, 1024x Fs
256x~1024x Fs for 32kHz / 44.1kHz / 48kHz
128x~512x Fs for 64kHz / 88.2kHz / 96kHz
64x~256x Fs for 128kHz /176.4kHz/192kHz
Supply voltage
3.0~3.3V for digital circuit
8V~26V for loudspeaker driver
Loudspeaker output power for Stereo
10W x 2ch into 8Ω @ 10% THD+N@13V
15W x 2ch into 8Ω @ 10% THD+N@16V
Sounds processing including:
Volume control (+24dB~-103dB, 0.125dB/step)
Dynamic range control
Power clipping
Channel mixing
User programmed noise gate with hysteresis window
DC-blocking high-pass filter
Anti-pop design
I²C control interface with selectable device address
Internal PLL
Dynamic temperature control
Short circuit and over-temperature protection
LV Under-voltage shutdown and HV Under-voltage detection
DC detection function
Clock detection function
Filter-less solution
MCLK-less application
Applications
TV audio
Boom-box, CD and DVD receiver, docking system
Powered speaker
Wireless audio
