AD22650-QH14NAR

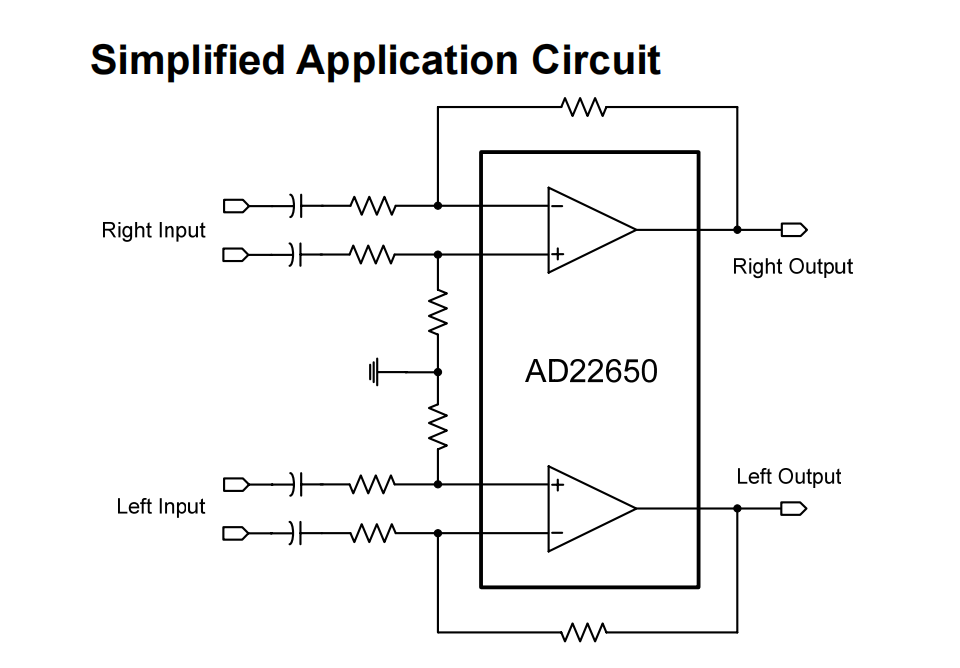

The AD22650 is a 3-Vrms cap-less stereo line driver. The device is ideal for single supply electronics. Cap-less design can eliminate output dc-blocking capacitors for better low frequency response and save cost.

The AD22650 is capable of delivering 3-Vrms output into a 2.5kΩ load with 5V supply. The gain settings can be set by users from 1V/V to 10V/V externally. The AD22650 has internal and external under voltage protection to prevent POP noise.Build-in shutdown control and de-pop control sequence also help AD22650 to be a pop-less device.
The AD22650 is available in a 14-pin TSSOP package.

Features
Operation Voltage: 3V to 5.5V
Cap-less Output
- Eliminates Output Capacitors
- Improves Low Frequency Response
- Reduces POP/Clicks
Low Noise and THD
- SNR > 102dB
- Typical Vn < 12uVrms
- THD+N < 0.02%
Maximum Output Voltage Swing into 2.5k Load
- 2Vrms at 3.3V Supply Voltage
- 3Vrms at 5V Supply Voltage
Differential Input
External Gain Setting from 1V/V to 10V/V
Fast Start-up Time : 0.5ms
Integrated De-Pop Control
External Under Voltage Protection
Thermal Protection
Less External Components Required
+/-8kV IEC ESD Protection at line outputs

Applications
LCD / PDP TVs
CD / DVD players
Set-Top Boxes
Home Theater in Box
