ESMT(晶豪科技)
DC/DC LED驱动器
EMD2095-00VC06NRR

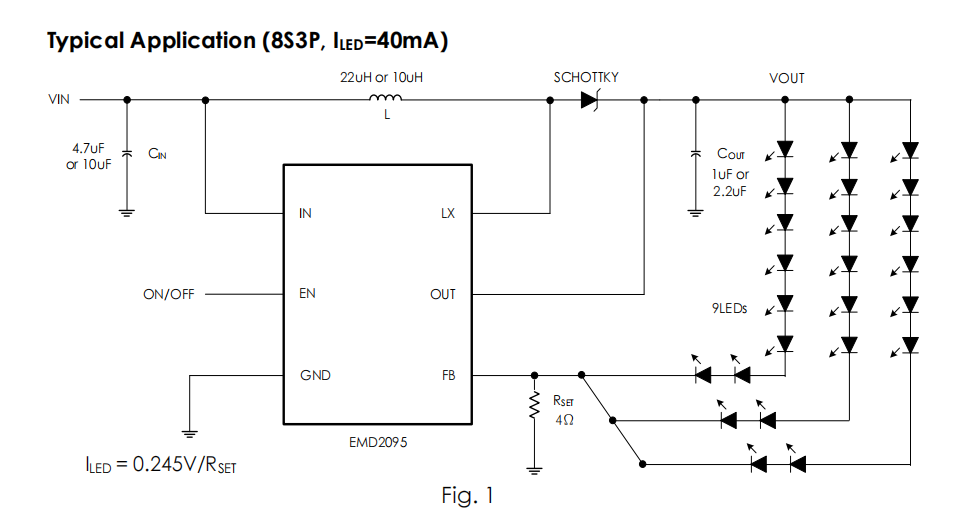

The EMD2095 is a highly efficient, step-up DC/DC converter for driving white LEDs. The device can drive up to 8 serially connected white LEDs from a single Li-Ion battery, or to drive multiple serial and parallel combinations with a DC power supply from 2.5V to 5.5V. The EMD2095 uses current mode and pulse-width modulated (PWM) operation. Its high switching operation frequency of 1.2MHz allows the system to use small inductor, input and output capacitors. An internal compensation circuit can reduce the external component count.
To safeguard the system, the EMD2095 includes various protection circuits such as under-voltage lockout, current limit, over voltage and thermal shutdown. EMD2095 are available in the tiny packages of SOT-23-6L.
Features
Up to 8 WLEDs supports
Low Quiescent Current: 120 μA
Over Voltage Protection: 31V
Inherently Matched LED Current
Shutdown Current < 1μA
Reference Voltage 0.245V
PWM Dimming Control (2KHz~200kHz)
Internal Soft Start and Compensation
1.4A Internal power MOSFET Switch
Low Profile SOT-23-6 Package
Applications
Mobile Phone
Digital Still Cameras
Portable applications
MP3 Players
GPS Receivers
