升压稳压器
ETA1133
ETA1133 is highly efficient 2.5 MHz, 1.5A input current, step-up DC-to-DC converter. ETA1133 converts input voltages from 2.5 V to 5.25 V to a fixed output voltage of 5.4V.

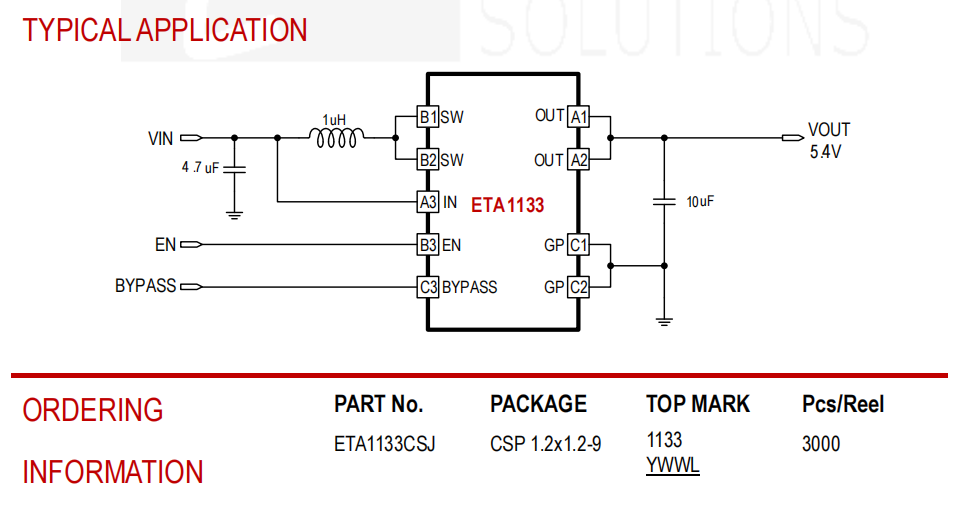

Unlike most step-up converter, it incorporates circuits that disconnect the input from output, during shutdown, short-circuit, output current overloading, or other events when output is higher than the input. This eliminates the need for an external MOSFET and its control circuitry to disconnect the input from output, and provides robust output overload protection. These devices are optimized for battery powered applications. High efficiency of up to 95% enables an extended battery life in all portable designs. Step-up operation at a switching frequency 2.5 MHz allows using 1uH inductor and 10uF output capacitor.
ETA1133 is with a space saving CSP1.2x1.2-9L package.
FEATURES
Up to 95% DC-DC Efficiency
Up to 1. 5A Max input current
Output Disconnect
Short-circuit Protection
Output to Input Reversed Current Protection
45μA No load IQ and light load PFM Mode;BYPASS MODE
Current Mode control
Shutdown at first power up and OTP
Fixed 5.4V output
CSP1.2x1.2-9 package
APPLICATIONS
NFC for POS terminal
NFC for Smart Phone
Application with 5.4V Output for General Purpose
