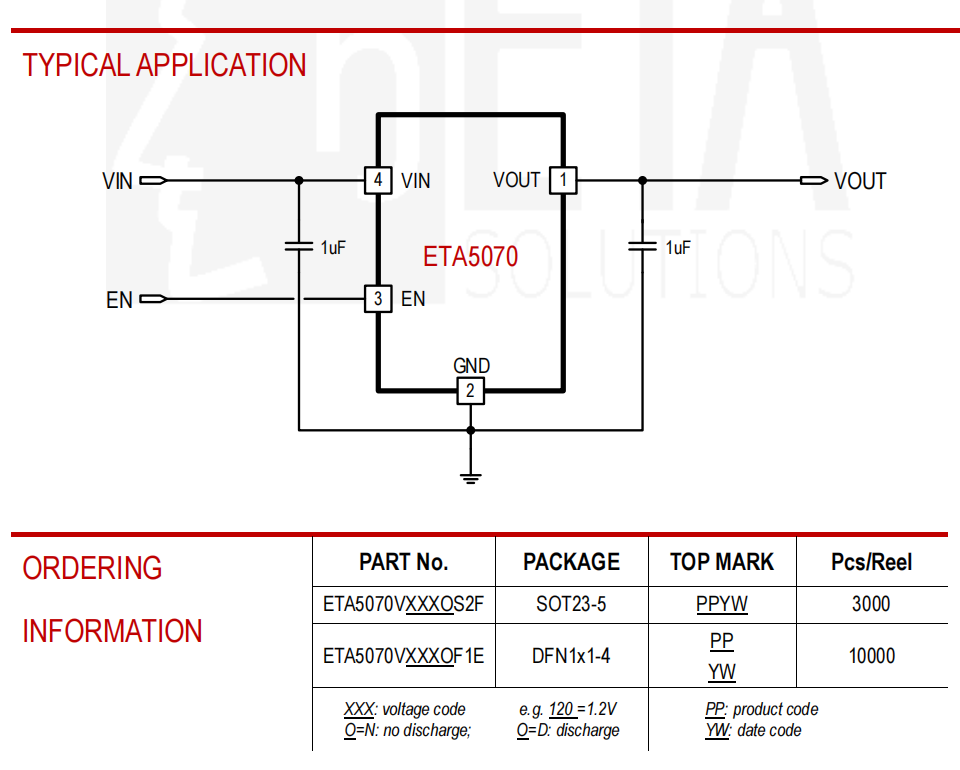

ETA5070*
ETA5070 is a fixed output, low-dropout (LDO) low-power linear voltage regulator that features ultra-low standby current as low as 0.7uA. It can withstand input voltage up to 7V and delivery at least 150mA at output. Therefore, ETA5070 is an ideal power supply for low power applications such as IoT, wearables and other battery powered system, and etc.
ETA5070 is available in DFN1x1 and SOT23-5.
FEATURES
0.7uA ultra-low Iq
7V input voltage
150mA output current
Stable with a Wide Range of Ceramic Capacitor
0.34V dropout voltage for 100mA at Vout=2.8V
APPLICATIONS
NB-IoT module
Wearables
Fingerprint lock
