降压式转换器
JW5352M
The JW5352 and JW5352M are monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5352 and JW5352M deliver 2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5352 and JW5352M operate in low frequency to maintain high efficiency.
JW5352 and JW5352M guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
JW5352 and JW5352M are available in SOT23-6 package, which provides a compact solution with minimal external components
FEATURES
4.5V to 18V operating input range 2A output current
Up to 95% efficiency
PFM at light load
600kHz switching frequency
Internal soft-start
Input under-voltage lockout
Current run-away protection
Output short protection
Thermal protection
Available in SOT23-6 package
APPLICATIONS
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computers

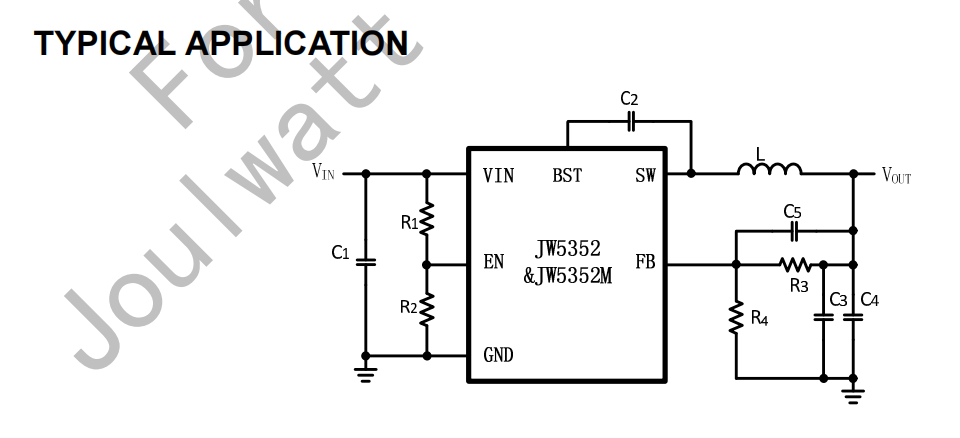

.png)
