降压式转换器
JW5372F
The JW5372 and JW5372F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5372 and JW5372F deliver 4A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, JW5372 operates in low frequency to maintain high efficiency.
JW5372 and JW5372F guarantee robustness with output short protection, thermal protection, current run-away protection and input under voltage lockout.
JW5372 and JW5372F are available in TSOT23-6 package, which provide a compact solution with minimal external components.
FEATURES
4.5V to 18V operating input range 4A output current
Up to 96% efficiency
PFM mode (JW5372) at light load
FCC mode (JW5372F) at light load
600kHz switching frequency
Internal soft-start
Input under voltage lockout
Current run-away protection
Output short protection
Thermal protection
Available in TSOT23-6 package
APPLICATIONS
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computers

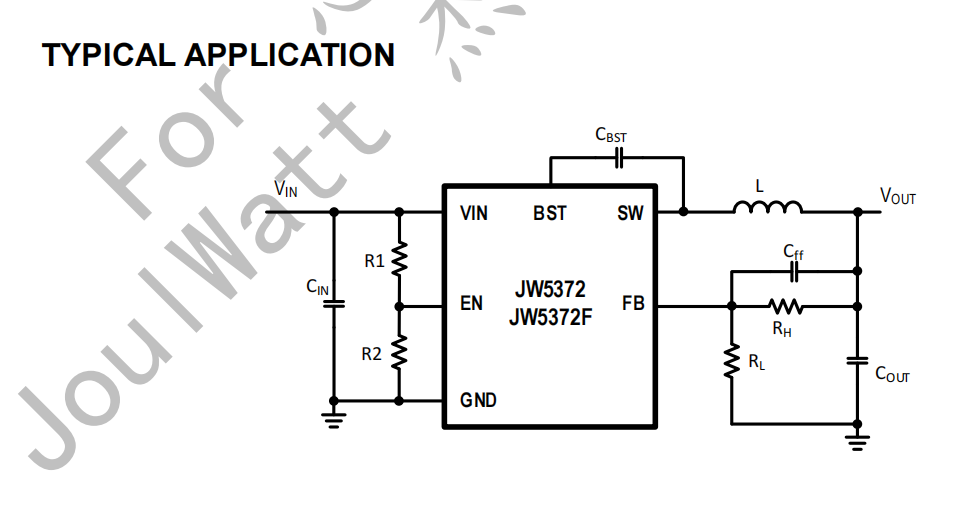

.png)
