降压式转换器
JW5056

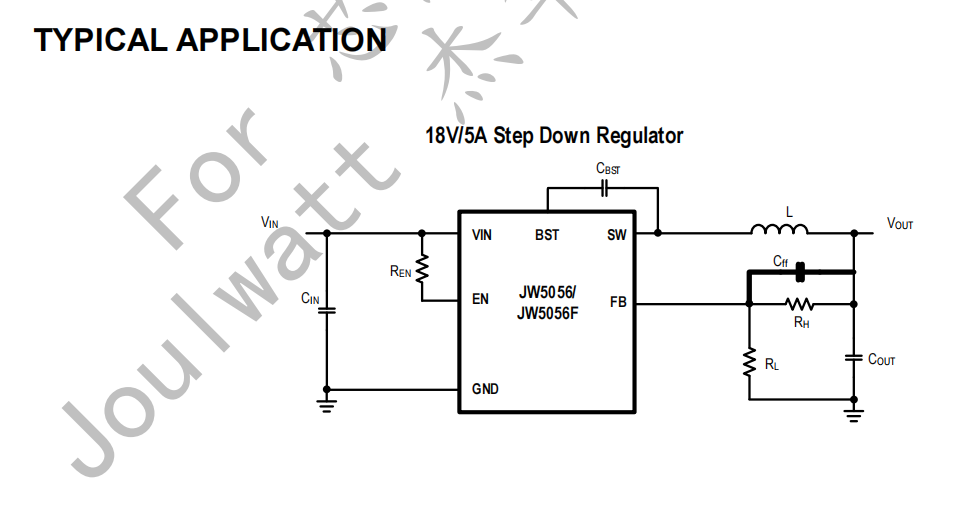

The JW5056 and JW5056F are monolithic buck switching regulators based on I2 architecture for fast transient response. Operating with an input range of 4.5V~18V, JW5056 and JW5056F deliver 5A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode.
JW5056 and JW5056F guarantees robustness with output short protection, thermal protection, current run-away protection, and input under voltage lockout.
JW5056 and JW5056F are available in TSOT23-6 package, which provide a compact solution with minimal external components
FEATURES
4.5V to 18V operating input range 5A output current
560kHz switching frequency
1% feedback voltage accuracy
Internal soft-start
PFM operation at light load (JW5056)
FCCM operation at light load (JW5056F)
Output short protection
Thermal protection
Available in TSOT23-6 package
APPLICATIONS
Distributed Power Systems
Networking Systems
FPGA, DSP, ASIC Power Supplies
Green Electronics/ Appliances
Notebook Computer
