低压差线性稳压器
ETA5050*

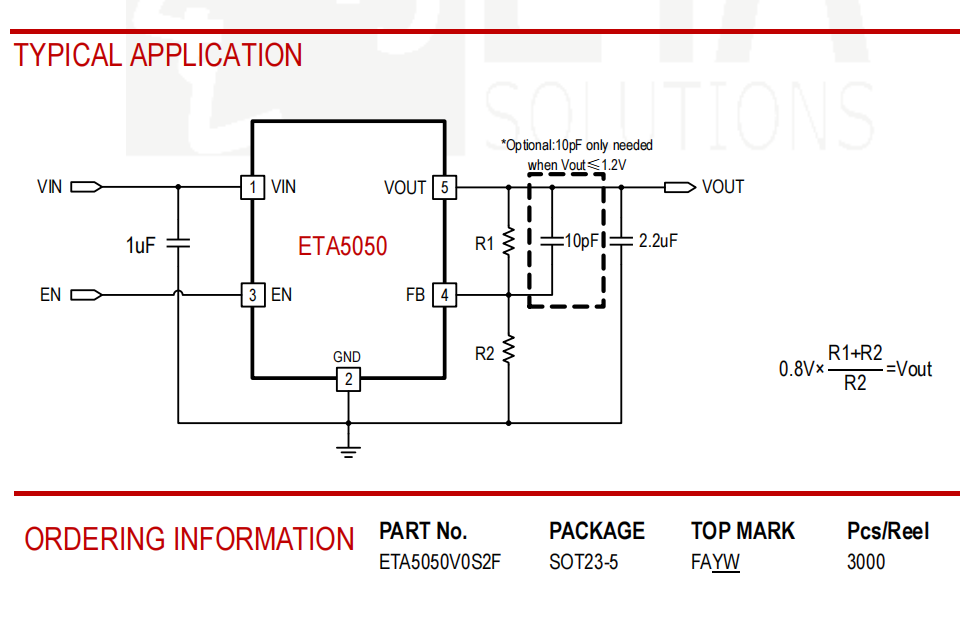

ETA5050 is a 500mA low noise and fast transient response liner regulator with adjustable output voltage and ultra-low dropout voltage. Its output voltage is programmed by a resistor divider, and can be as low as 0.8V, which satisfies the most advanced ICs which may require supply voltage to be 0.9V – 1.2V.
ETA5050 is consists of a precise voltage reference, an error amplifier, a compensation network and a low ON-resistance power P-MOSFET. It also integrates many protection circuitry, like current limit and over-temperature protection module.
ETA5050 is in a tiny SOT23-5 package.
FEATURES
500mA output current
Adjustable output voltage
Minimum output voltage as low as 0.8V
Ultra-low dropout voltage 370mV @ 500mA
Low quiescent current 40uA
<1uA shutdown current
Short-circuit protection
Over-temperature protection
APPLICATIONS
Cellphones
Camera modules
Medical Instruments
Battery powered devices
