ETA1627

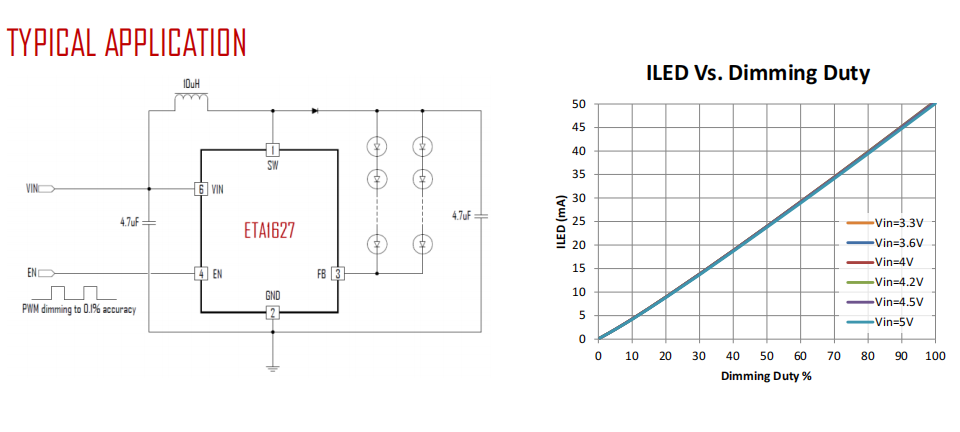

The ETA1627 is a driver specially designed for back-lighting. It consists of a high accuracy current sink that allows low duty dimming and a high efficiency step-up converter with an integrated 40V power MOSEFT. It runs with an optimal 0.8MHz frequency that enables use of small external components while still providing best efficiencies. It has an internal current limit as high as 1A, and it can drive up to 10 LEDs and 50mA in total output current. True PWM-Dimming can be achieved through the EN. One of the most important features of ETA1627 is that it provides an accurate current at dimming duty cycle down to 0.1%. This is very important for backlights that need to dim to very low light while still providing good consistency.
