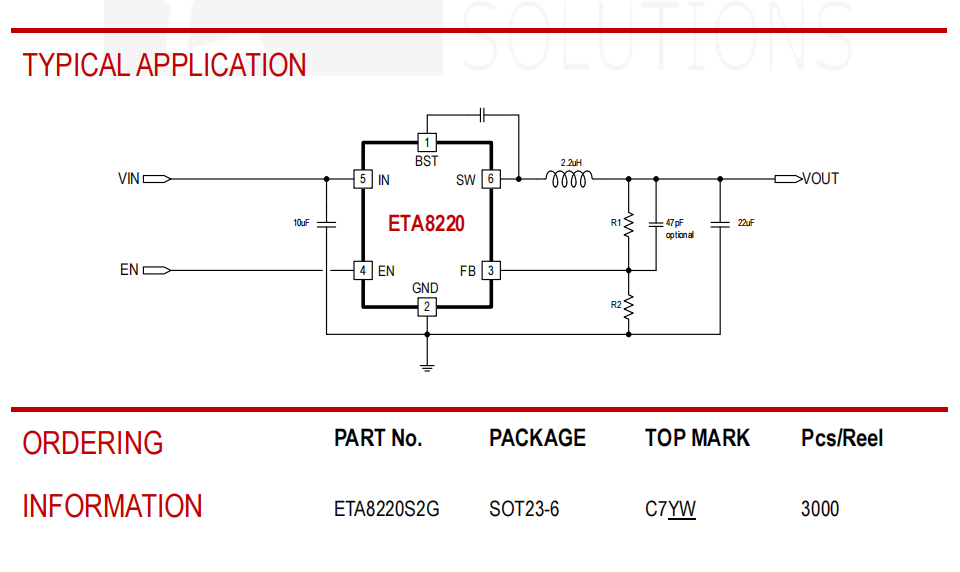

ETA8220
ETA8220 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies from light load to heavy load. During light load, ETA8220 goes into a PFM mode that saves switching loss achieving high efficiency. The adaptive COT control also maintains a constant switching frequency across line and load.
ETA8220 is available in SOT23-6 package.
FEATURES
Wide Input Range: 4.5V-18V
Adaptive COT Control
Ultra-fast load transient response
High Efficiency PFM mode at light load
High Efficiency Synchronous operation
No load Iq 210uA
Low Rdson Internal power FETs
Capable of Delivering 2A
No External Compensation Needed
Thermal Shutdown and UVLO
Available in SOT23-6 Package
APPLICATIONS
LCD TV
Set Top Box
xDSL Modem
