ETA4049

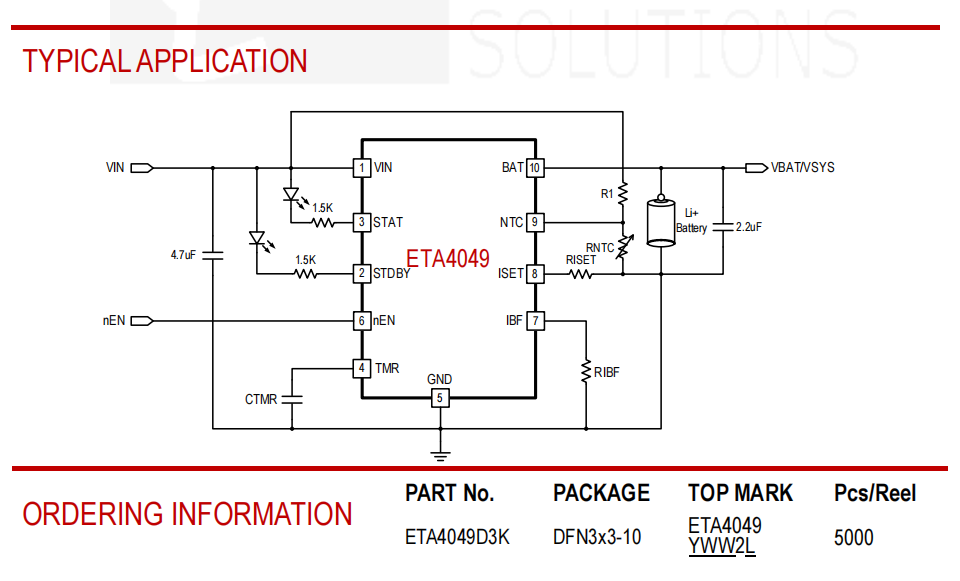

ETA4049 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA4049 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA4049. Build-in thermal feedback mechanism regulates the charge current to control the die temperature during high power operation or at elevated ambient temperature. The ETA4049 has the function of pre-charge, which can charge the deeply discharged batteries by trickle. The fast charge current can be programmed by an external resistor. CV regulation mode is automatically enabled once the battery’s charging curve reaches the constant voltage portion. The output current then decays and is finally terminated once the charge current drops to the current threshold set by RIBF. The ETA4049 keeps monitoring the battery voltage and enables a new charge cycle once the voltage drops by 200mV below the CV value.

ETA4049 is in a DFN3x3-10 package.

FEATURES
30V Input Standoff Voltage
4.2V Charge Termination Voltage
2.6V Trickle Charge Threshold
Input Over Voltage Protection
Charge Current Programmable, up to 1A
400nA BAT Current when No Charging
Soft-start Limits in-rush Current
DFN3x3-10 Package
RoHS Compliant

APPLICATIONS
E-cigarette
Toys
Bluetooth Applications
Li-ion Battery Powered Devices
