ETA40543

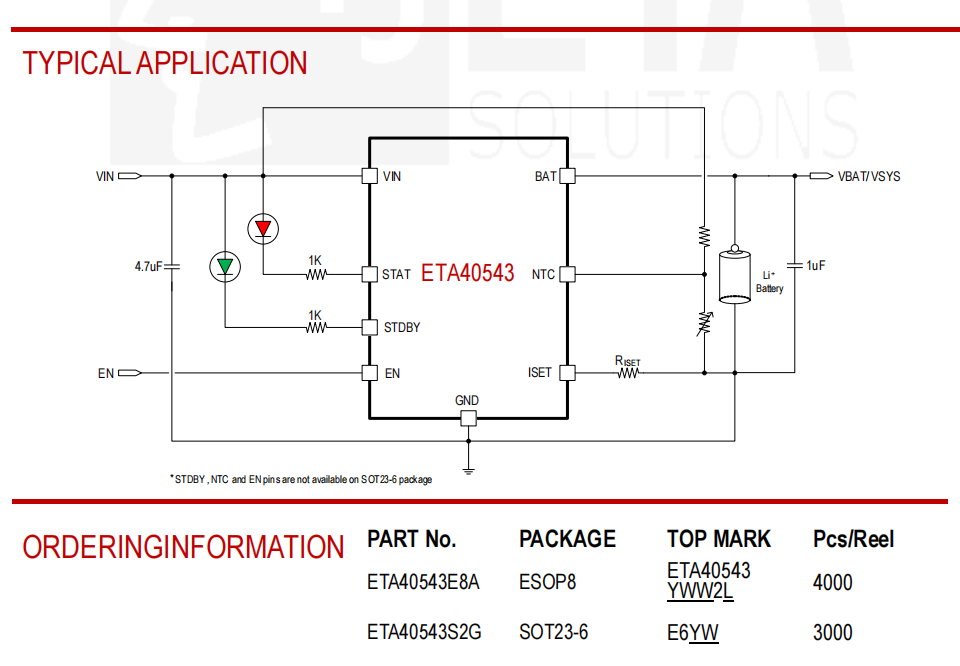

ETA40543 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA40543 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA40543. Build-in thermal feedback mechanism regulates the charge current to control the die temperature during high power operation or at elevated ambient temperature. The ETA40543 has a pre-charge function for trickle charging deeply discharged batteries. The fast charge current can be programmed by an external resistor. CV regulation mode is automatically enabled once the battery’s charging curve reaches the constant voltage portion. The output current then decays and is finally terminated once the charge current drops to 1/10th of the programmed value. The ETA40543 keeps monitoring the battery voltage and enables a new charge cycle once the voltage drops by 120mV below the CV value.
