ETA6017

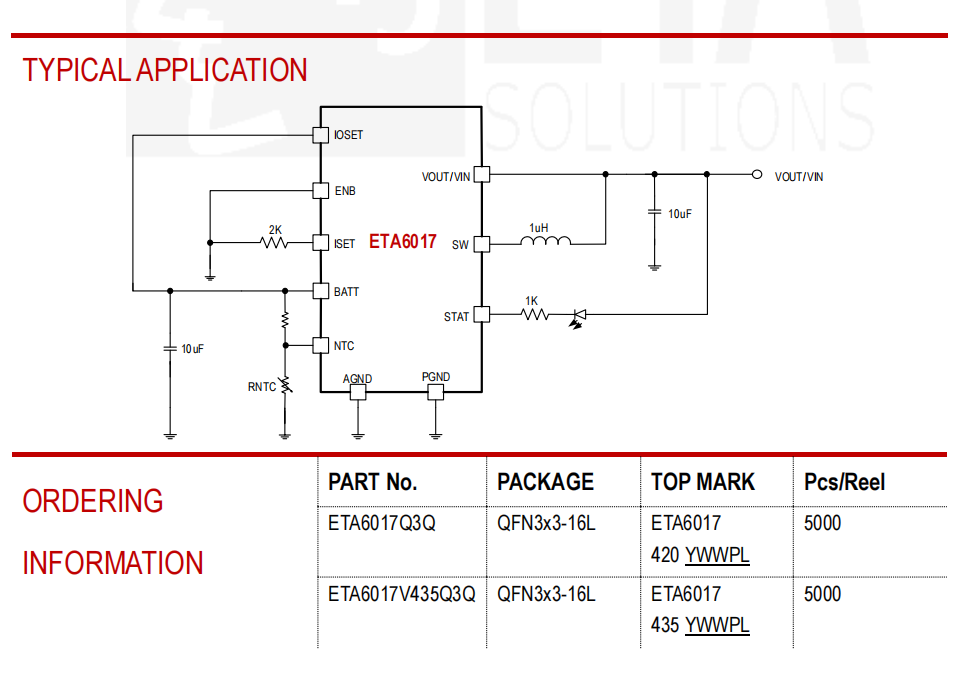

The ETA6017 includes a 5V single cell Li+ battery linear charger and a 1.5V/2A buck synchronous converter.
The linear charger is fully integrated with constant current (CC) / constant voltage (CV) control module and a charge FET.
It also can drive a LED via output pin to indicate the charge status.
The integrated 1.5V output buck converter is capable of delivering 2A current at output.
ETA6017 is available in a QFN3x3-16 package.
FEATURES
4.2V/4.35V charge termination voltage
Charge current programmable
1.5V/2A output power
Up to 94% Efficiency for buck
NTC thermistor input
Thermal shutdown
QFN3x3-16 Package
APPLICATIONS
Lithium Battery
