ETA9084

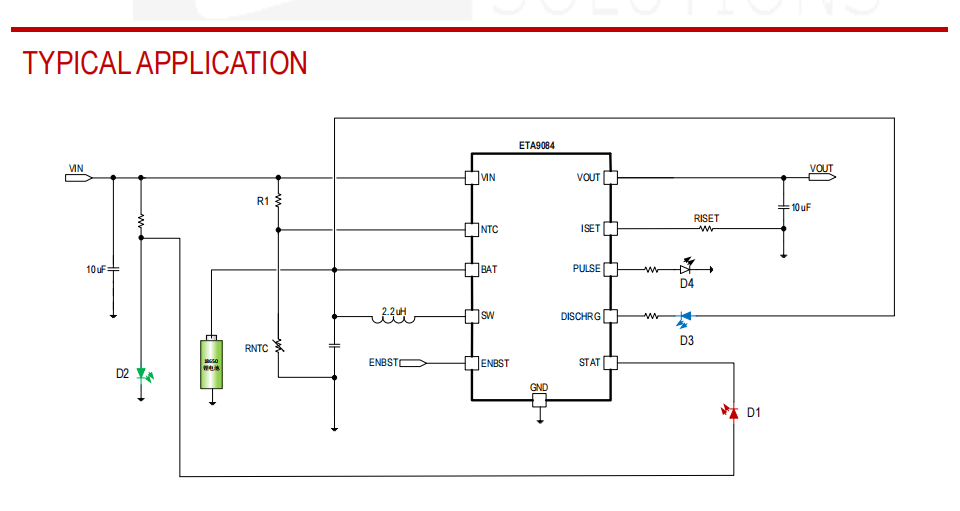

The ETA9084 is an all-in-one solution for TWS charge cradle. It includes a 20V single cell Li+ battery linear charger, a 5V Boost synchronous converter with true-shutoff function and a Fuel Gauge with LED indication.
The linear charger is fully integrated with constant current (CC) / constant voltage (CV) control module and a charge FET. The integrated low power 5V Boost converter is capable of delivering 0.5A current at 5V output. It can be shut down by pulling the ENBST pin low. The true shut down feature disconnect output from the BAT thereby further decreasing the system standby power. There are 4 LEDs driven by 3 output pins to indicate the charge/discharge status and battery level.
The ETA9084 is ideal for applications such as a TWS charging cradle that requires low standby power and small PCB space.
The ETA9084 is housed in a ESSOP10/DFN3x3-10 package
FEATURES
Ultra low boost standby Iq , Ibat<10uA
20V Charge input standoff voltage
4.2V/4.35V charge termination voltage
Charge current programmable
Boost output disconnect and SCP
5V/0.5A output power
Up to 96% Efficiency for boost
Fuel Gauge and LED indicators
NTC thermistor input
Logic Control Shutdown
Thermal shutdown
ESSOP10/ DFN3x3-10 Package
APPLICATIONS
TWS BT earbuds charge case
Bluetooth application
Battery powered IOT module
Power Bank
