ETA9698

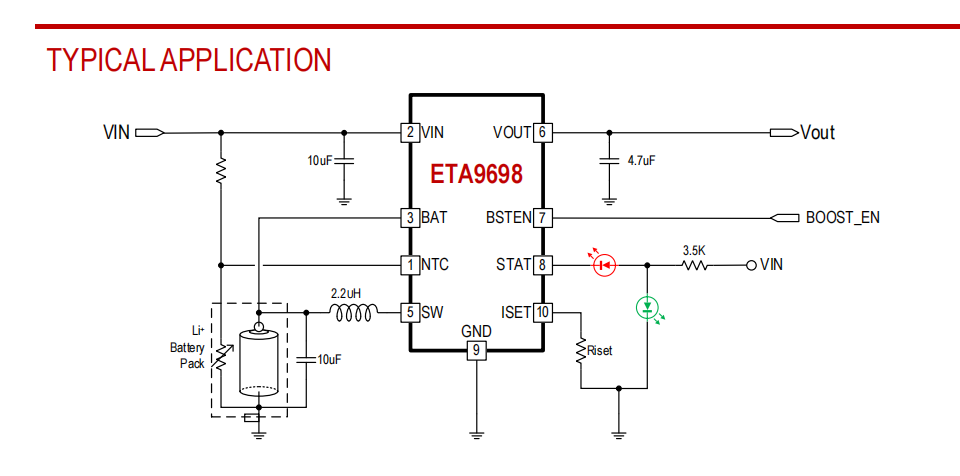

ETA9698 is an ultra low power PMU with 2 channels: a 40V single cell Li+ battery linear charger and a 5V Boost synchronous converter with true-shutoff function. The linear charger fully integrated constant current (CC) /constant voltage (CV) control module and charge FET, with minimal external devices. It also has pre-charge function for trickle charging deeply discharged battery and its fast charge current can be programmed by an external resistor. When CV charge stage is entered, charge will be terminated once the charge current drops to 1/10 of the programmed value. A “STAT” pin is also available to indicate the charge status. And the low power 5V Boost converter is capable of delivering 0.4A current at 5V output. It can be shut down by pulling ENBST low, it will disconnect the output from the BAT to further decrease the system standby power. Its 1.4MHz switching frequency enable a very small external inductor with inductance as low as 2.2uH. The ETA9698, as a whole, is an ideal for the system solution that requires very low standby power and compact PCB board size.
